WEBSCAN 2D & BarCode Verifiers

Recommended Grading：　

TruCheck USB Omni

Main Screen View

Discription:

The TruCheck 2D Omni has an extra large field of view (up to 6 inches wide) and super high resolution. You can select multiple regions within your image so you can verify every bar code on a blister card, or several bar codes on a shipping label all at once.

Verify your largest and smallest 1D and 2D codes with the same unit, and get accurate results every time! Complies with ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 15426-1, ISO/IEC 15426-2. Its 5MP camera provides the best resolution in the industry, giving you the ability to evaluate entire labels with multiple 1D and 2D bar codes with X dimensions down to 7 mil quickly, easily and confidently.

The small footprint of the TruCheck Omni’s rugged housing frees up space on your desk or production line. Solid-state LEDs run cool and last longer than the hot, expensive halogen lights of other verifiers. When the unit is not in use, exit Live Mode to turn off the LEDs, saving your company money in energy bills. The hinged cover holds labels flat for precise verification results and protects the window when not in use.

Check the syntax of 1D and 2D bar codes to confirm that the data content does not have errors. Quickly shows you the content and meaning of GS1 coupons, pharmaceutical labels with expiration dates and lot numbers, or any data which follows common industry standards such as GS1 application identifier formats.

TruCheck USB Omni TC USBOmni.pdf

Model:TC-USB/OmniW

Specifications:

Symbology：

【1D Code】:

All GS1 DataBars & with Comoposite, GS1-128, EAN/UPC,2of5, Code39,

Code93, Codabar,Pharmacode

【2D Code】:

Data Matrix,GS1Data Matrix,ECC200,Aztec,PDF417, QR, Micro QR,

Micro PDF417,GS1DataBar14, Limited, Stacked,

Expanded +Composite

GS1 Solution Partnership

Field of View:
• Standard (100 mm x 75mm)
• Extra Large (150 mm x 120 mm)

TruCheck USB Omni【TC-Omni】

Options:
• GS1 Calibrated Conformance Test Card
• Extended Service Plans

Light Source:
• Narrow band 660nm LED

Features:
• CCD Imager with Integrated Illumination
• Integrated processing for stand alone operation
• ISO grading
• Data export to printer, PDF file or Excel
• Software easily upgradeable
• Calibrated to NIST traceable standards
• Parses and validates industry standard

data formats
• Variable aperture size

Decoding/Grading Analysis Specifications:
Full ISO 15415 Grading A, B, C, D, F: Unused Error Correction, Modulation, Axial non-uniformity,
Grid non-uniformity, Symbol Contrast, Reference Decode, Finder Pattern Damage, Bar Width Growth (X and Y), Quiet Zone, AIM DPM Grading: Cell Contrast, Cell Mod.

X-Dimensions:
• 9 mil minimum X dimension on standard
• 7 mil minimum X dimension on X-large

Physical Characteristics:
• Dimensions (LxWxD) 14 5/8” x 10 5/8” x 7 3/4”
(373mm x 271mm x 196mm)
• Weight: 12 lbs (5.5 kg)

Environment:
• Temperature: 0-40°C
• Humidity: 5% – 95% noncondensing

Conformance:
• ISO 16022, 18004, 15415, 15416, 15426-2

Model:TC-USB/OmniW

Recommended Grading：　

TruCheck USB Laser/Standard series

※Excluded PC

TruCheck USB Laser/Tower Series

Specifications:

Symbologies:
UPC-A, UPC-E, EAN-13, EAN-8, Code 128, Code 39,
Interleaved 2 of 5, Codabar, Code93, Pharmacode,
TLC-39 (TCIF), GS1-128, GS1-DataBar (RSS family),
GS1 Coupon Code (RSS Expanded), PDF-417, GS1 Composite

Options:
• GS1 Calibrated Conformance Standard
• Extended service plans
• Fixed-mount presentation stand
• 2D imager available for matrix symbologies

Laser:
• Source: 650nm
• Aperture: 6 mil standard
• Optional spot sizes: 3 mil, 10 mil, 20 mil

Features:
• Graphical user interface in MS Windows®
• Fixed optical setup
• Motorized laser movement for 10-scan hands-free operation
• Auto discrimination
– Code type and magnification / X dimension
• Traditional and ISO/ANSI grading
• Film negative mode
• Report generation with scan reflectance profile
• Rugged Housing
• Free software upgrades
• Bi-directional scanning

Physical Characteristics:
• Dimensions (LxWxD) 7” x 6.75” x 8”
• Weight: 4.5 lbs.

Conformance:
• ISO 15416
• ISO 15426-1
• ANSI X3.182

---------------------------

Model:TC-USBL6/3/10/20

:USB Laser/Standard series

【TC-USBL6】【TC-USBL3】　【TC-USBL10】　【TC-USBL20】

6MIL 　　　　3MIL 　　　10MIL 　　 20MIL

TruCheck USB Laser Remote 　 TC USBLaser.pdf

Model:TC-USBL6,TC-USBL3,TC-USBL10,TC-USBL20

Model:TC-USBLT6,TC-USBLT3,TC-USBLT10,TC-USBLT20

Symbology：

All GS1 DataBars & with Comoposite, PDF417,MicroPDF417, GS1-128, EAN/UPC,2of5, Code39,Codabar, Code93, Pharmacode,Others

GS1 Solution Partnership

Discription:

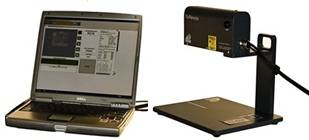

TruCheck Laser USB is the new affordable, PC-based bar code verifier that truly takes bar code verification to an entirely new level of ease of use. By combining an incredibly easy-to-use Windows user interface with an automatic scanning head, Webscanhas created an unbeatable solution for ISO / ANSI / CEN grading. TruCheck Laser USB verifies all common linear bar codes with the touch of a button — including the new multi-row stacked bar codes.

Accurate and Repeatable Measurements.

The TruCheck Laser USB’s unique scanning head features a moving laser that automatically scans from top-to-bottom on a bar code. The system takes the 10 individual scans to instantly generate the overall ISO grade of the bar code.The moving laser removes all the influence of a human operator as the scan angle and distance are fixed to ensure accurate, repeatable results. The scanning head is contained in a compact, sturdy housing and attaches to your PC via a USB cable for incredible flexibility. The TruCheck Laser USB can easily be taken into a warehouse, or any manufacturing location. A guide plate makes it fast and easy to position over a bar code.

Results you can count on.
Results — and any faults — are vividly displayed on your PC monitor, and clearly highlight any problem areas in your bar codes.

In addition to the quality grade, the TruCheck Laser USB also parses data and checks for proper formatting of GS1 Application Identifier (AI) data fields. This makes the Laser USB the ideal verification solution for critical applications such as the new GS1 Coupon Code, and also pharmaceutical unit dose labeling. You can use any local or network printer to get hard copy results. Want to save paper? Save reports as a PDF file, store data directly in a spreadsheet, or as an HTML file which can be displayed within any web browser. Documentation and communicating your quality and compliance has never been so convenient! TruCheck vs. hand-held devices. There is no comparison.

Stop wasting time with hand-held devices that generate inconsistent results!
Think of the hours that are wasted trying to figure out the true grade of a bar code. One operator gets a B grade, the next get a D — all on the same bar code. Since the TruCheck Laser USB scans automatically, every operator gets the same result. With Webscan, you get a bar code grade you can count on — and the peace of mind that comes with proven reliability and repeatability.

Ready for the Future.
With the TruCheck Laser USB, you will be ready for line-scannable 2D codes, such as PDF417 and GS1 Composite bar codes. No need to replace equipment if your customers start with the next generation bar codes. Your TruCheck Laser USB verifier will not become obsolete. And, you can even add the optional TruCheck 2D USB imager in order to measure 2D matrix-style symbologies such as Data Matrix, QR code and Aztec code. Regardless of your needs, Webscan has a solution.

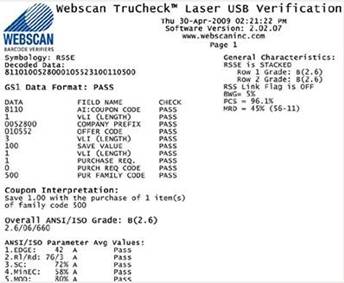

Below is a printed report from a TruCheck Laser USB verification scan. Learn more about Webscan’s printed reports and software interface here.

--------------------------------

Model:TC-USBLT6/T3/T10/T20

: USB Laser/Tower Series

【TC-USBL6/T】【TC-USBL3/T】【TC-USBL10/T】【TC-USBL20/T】

6MIL/T　　　　　 3MIL /T　　　 10MIL/T 　　　　 20MIL/T

TruCheck USB CCD Remote

Model:TC-USBC/STD, TC-USBC/WIDE

Recommended Grading：　

Field of View

CCD5MIL STD.(25mmX18mm/MinXDim7.5MIL)

CCD5MIL WIDE(40mmX30mm/MinXDim7.5MIL）

※Excluded PC

-----------------------------------------------------

Dual Remote products//////////////////

TruCheck USB Laser & CCD Remotes

Model:TC-USBLC

Recommended Grading：　

※Excluded PC and Stand for CCD Remote

TruCheck USB 2 Laser Remotes

Model:TC-USBWL

Recommended Grading：　

※Excluded PC

Specifications: 　　　　 TC USBCCD.pdf

Symbology:

Data Matrix, QR Code,

GS1-DataBar (formerly RSS), GS1-Composite Symbology

UPC/EAN, Code 128, Code 39, TLC-39, Codabar,

PDF 417, Micro PDF 417 (limited to Field of View size)

Features:

• CCD Imager with Integrated Illumination

• USB interface to PC

• ISO grading

• Data export to printer, PDF file or Excel

• Software easily upgradeable

• Calibrated to NIST traceable standards

• Parses and validates industry standard data formats

Light Source: Narrow band 660nm LED

Decoding/Grading Analysis Specifications

Full ISO 15415 Grading A, B, C, D, F:

Unused Error Correction, Modulation, Axial non-uniformity,

Grid non-uniformity, Symbol Contrast, Reference Decode,

Finder Pattern Damage, Bar Width Growth (X and Y),

Quiet Zone, AIM DPM Grading: Cell Contrast, Cell Mod.

TruCheck USB CCD(DPM) Remote

Model:TC-USBC/D

Recommended Grading：　

※Excluded PC and Stand for CCD Remote

TC-USBC/D

Specification Conformance:

· MIL-STD 130N, MIL STD 130M Chg. 1,

· ISO 16022, ISO 18004,

· ISO 15415, AIQG AS9132,

· AIM DPM, ISO 15426-2

Version	Lighting	Field of View	Min. X Dim
Standard	45o	25mm x 18mm	7.5 MIL
Wide Angle	45o	40mm x 30mm	7.5 MIL
DPM	45o/30o/90o	25mm x 18mm	7.5 MIL

Environment

Temperature: 0-40°C

Humidity: 5% – 95% noncondensing

Physical

Remote Dimensions:

7.25” x 6.50” x 7”

Options

· GS1 Calibrated Conformance Test Card

· Extended Service Plans

---------------------------------

GS1 Solution Partnership

Recommended Grading：　

※Excluded PC

Discription:

The famed ease-of-use of Webscan’s TruCheck verifiers reaches new heights with the introduction of the TruCheck Tower™ 2D imaging verifier. With its large field of view and ability to verify 1D and 2D symbols with X dimensions as small as 7.5 mil the TruCheck Tower can handle your most demanding bar code verification challenges. Check your largest and smallest 1D and 2D codes with the same unit, and get accurate results every time! Complies with ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 15426-1, ISO/IEC 15426-2. Using its high resolution, the TruCheck Tower accurately creates a synthetic round aperture to high accuracy compared to relatively low resolution competitive models.

Model:TC-USBC/T

TruCheck USB CCD Tower 　 TC USBCCD Tower.pdf

　Model:TC-USBC/T

Specifications:

Symbology：

【1D Code】:

All GS1 DataBars & with Comoposite, GS1-128, EAN/UPC,2of5, Code39, Code93, Codabar,Pharmacode

【2D Code】:

Data Matrix,GS1Data Matrix,ECC200,Aztec,PDF417, QR, Micro QR, Micro PDF417,GS1DataBar14, Limited, Stacked,

Expanded +Composite

GS1 Solution Partnership

Field of View:
• Standard (80 mm x 55mm)

Options:
• GS1 Calibrated Conformance Test Card
• Extended Service Plans

Light Source:
• Narrow band 660nm LED

Features:
• CCD Imager with Integrated Illumination
• USB 2.0 interface to PC
• ISO grading
• Data export to printer, PDF file or Excel
• Software easily upgradeable
• Calibrated to NIST traceable standards
• Parses and validates industry standard data formats
• Variable aperture size

Decoding/Grading Analysis Specifications:
Full ISO 15415 Grading A, B, C, D, F: Unused Error Correction,Modulation, Axial non-uniformity,
Grid non-uniformity, Symbol Contrast, Reference Decode, Finder Pattern Damage, Bar Width Growth (X and Y), Quiet Zone, AIM DPM Grading: Cell Contrast, Cell Mod.

X-Dimensions:
7.5 mil minimum X dimension

Physical Characteristics:
• Dimensions (LxWxH) 12” x 10” x 17”
• Weight: 13 lbs.

Environment:
• Temperature: 0-40°C
• Humidity: 5% – 95% noncondensing

Conformance:

• ISO 16022, 18004, 15415, 15416, 15426-2

Recommended Grading：　

※Excluded PC

Discription:

Adjust the working distance of this versatile verifier for any part. Focus adjustment is guided by Webscan’s proprietary laser indicator. With its large field of view and ability to verify 1D and 2D symbols with X dimensions as small as 7.5 mil the TruCheck Tower can handle your most demanding bar code verification challenges. Not just for direct part marks: a choice of 45 degree lighting for ISO 15415 or AIM DPM (45Q or 90) makes it perfect for virtually any direct part marking applicaiton include dot-peen and laser etched UID symbols.

But that’s not all. The adjustable height off this system makes it perfect for verifying bar codes, whether they are 1D or 2D, when they are recessed or otherwise hard to reach with other verifiers. Simply place your part under the camera head, and adjust the height with the manual turn-wheel while the software detects the laser positioning indicator for perfect focus automatically!

Check your largest and smallest 1D and 2D codes with the same unit, and get accurate results every time! Complies with AIM DPM (45Q and 90 lighting option). ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 15426-1, ISO/IEC 15426-2. Using its high resolution, the TruCheck Tower accurately creates a synthetic round aperture to high accuracy compared to relatively low resolution competitive models.

TruCheck USB CCD Tower(DPM) TC USBCCD_TowerDPM.pdf

　型式:TC-USBC/TD

Specifications:

Symbology：

Data Matrix,GS1Data Matrix,ECC200,Aztec,PDF417, QR, Micro QR, Micro PDF417,GS1DataBar14,Limited,Stacked,Expanded

+ Composite,UPC/EAN,GS1-128,ITF,Codabar,Others

Field of View:
• Standard (80 mm x 55mm)

Options:
• GS1 Calibrated Conformance Test Card
• Extended Service Plans

Light Source:
• Narrow band 660nm LED
• Selectable 45 degree for ISO 15415 or 90 Degree for AIM DPM

X-Dimensions:
7.5 mil minimum X dimension

Physical Characteristics:
• Dimensions (LxWxH) 14” x 21” x 28”
• Weight: 25 lbs.
• Maximum Part Height: 12″

Environment:
• Temperature: 0-40°C
• Humidity: 5% – 95% noncondensing

Conformance:
• ISO 16022, 18004, 15415, 15416, 15426-2

Model:TC-USBC/TD

GS1 Solution Partnership

Recommended Grading：　

GS1 DataBar/GS1DataMatrix

IN_Line Verification Systems

M600 realize high-speed verification

at 9 codes/ sec.

For Windows 7/Vista/XP

･Main Screen　　　　･Blister　Pack setup　screen

･Database screen ･VF result histogram

Discription:

>High-speed inline verification system for All GS1DataBars/

2D Matrix Codes and Other symbologies.

>Indispensable system for the 100% inspection for the printing quality control of all kinds of GS1 DataBar (14, limited, stacked, composite) widely used for the blister and reagent package in the pharmaceutical sector

>The maximum scanning speed: over 540scans/min (9scans/sec) with CCD Area Imager.

>Verification results saved as a database. Job setting stored and a control output port equipped as a standard.

>In line version of widely used and known off line verifier TruCheck.

TruCheck Inline Tru IN-Line.pdf　　　　　　

　Model:TC-IL600

Specifications:

Symbology：

【1D Code】:

All GS1 DataBars & with Comoposite, GS1-128, EAN/UPC,2of5, Code39, Code93, Codabar,Pharmacode

【2D Code】:

Data Matrix,GS1Data Matrix,ECC200,Aztec,PDF417, QR, Micro QR, Micro PDF417 (limited to Field of View size),GS1DataBar14, Limited, Stacked,

Expanded +Composite

GS1 Solution Partnership

Features:
• CCD Imager with Integrated Illumination
• ISO grading
• Data export to Data Base , PDF file, or printer
• Fastest target speed 300 meters per minute
• Bar Code processing 10 per second *
• Calibrated to NIST traceable standards

Specification Conformance:
ISO 16022, ISO 18004, ISO 15415, ISO-15416, AIM DPM, ISO 15426-2

Decoding/Grading Analysis Specifications:
Full ISO 15415 Grading A, B, C, D, F:
Unused Error Correction, Modulation, Axial nonuniformity, Grid non-uniformity, Symbol Contrast, Reference Decode, Finder Pattern Damage, Bar Width Growth (X and Y), Quiet Zone, AIM DPM
Grading: Cell Contrast, Cell Mod.

Working Distance
Fixed distance 75mm from surface of imager to target

Light Source: Narrow band 660nm LED

Environment: Temperature: 0-40°C

* dependent on code size

Model:TC-IL600

Recommended Grading：　☆

TC201-R

Discription:

>Fulfills the ISO/IEC15415/15416,ANSI X3.182 Bar Code Quality Guideline

>Automatic motorized Laser movement 10 Scans ISO/ANSI Grading

>6mil Standard and Optional 3/10mil Laser Remote Scan Head

>Additional CCD Remote imager Scan Head(Option)　　

>Dimensional analysis accurate to +/-0,015” also provided

>Auto-discriminates between all popular symbologies　

>Analysis data & Scan Reflectance Profile Available via Printer

>Negative Film verifying mode

>Negative Imaged verifying mode

>Interface to PC via RS232output

>Bidirectional scanning

>Software upgradable

Model Configuration:

100 Series	TC101-R
200 Series	TC201-R
Options	3 mil or 10 mil

Options:
•Direct Thermal Printer

• UCC Conformance Standard Test Card

• Remote Scanning Head

• Extended Service Plans

Model:TC201-R　　　　　　　　　　　 Model:TC101-R　　　　　　　　　　　

TruCheck 201-R/ 101-R 　　　　 TC201-R/101-R.pdf

　Model:TC201-R/TC101-R

Specifications:

Symbologies：

•Model 100 Series:

UPC-A,UPC-E,EAN-13,EAN-8, Code 128, Code 39, Interleaved 2 of 5,
Codabar,Code93,Pharmacode

•Model200 Series:

All GS1 DataBars(DataBar14,Limited,Expanded,Stacked,

with Composite CC-A,CC-B,CC-C）PDF417,MicroPDF417

Phamacode,UPC/EAN,EAN/GS1-128,Code128,Code39,I2of5

Codabar,Code93.TLC-39

Laser:
•Source: 650nm

• Aperture: 6 mil standard

• Optional Spot Sizes: 3 mil, (10 mil lasers

available in the Remote Scanning Head)

Features:
• Fixed optical properties
• Motorized laser movement
• Auto discrimination
• Date and time notification
• Code type display
• Traditional and ANSI grading
• Film negative mode
• Report generation with Scan Reflectance Profile
• F-Interface to PC via RS-232 Output
• Programmable hot buttons
• Lockout- secures system settings
• Rugged Housing
• Free software upgrades
• LED Display
Green=Pass
Yellow=Warning
Red=Fail
• Bi-directional scanning
• Dimensional analysis accurate to +/- .0015”

Physical Characteristics:
• Dimensions (LxWxD) 16” x 8” x 20”
• Weight: 18 pounds
• Display: 4 lines by 20 characters
• Keypad: 16 characters

GS1 Solution Partnership

Recommended Grading：　☆

1D Code Inline Hi-Speed Verifier

Fixed mounting on press means all measurements are stable and repeatable job-to-job, operator-to-operator, shift-to-shift. At any time during production, you can see the total number of codes scanned and how they were ANSI graded on the display. The distribution of grades can also be printed out for each individual roll or as a job summary. It is not unusual to see hundreds of thousands of codes verified in a job!Flexographic printers using the TruSpec system report that bar width growth measurements allow continuous feedback on impression and plate swell throughout the run. In addition, contrast measurements correlate to the white ink opacity backing a bar code on clear film. The contrast measurements made by the TruSpec laser are absolute with a stable light source and fixed geometry. An operator can monitor and be alerted to decreasing background ink opacity by the Webscan system.

TruSpec InLine BarCode Verifier 　　 TruSpec.pdf

　Model:TS-100 / TS-25

Specifications:

Symbology：

UPC/EAN,GS1-128,Code39,I2of5,*Codabar(*Option)

Discription:

Patented TruSpec technology leads the way with in-line barcode verification. TruSpec is high-speed on-line technology that operates on flexographic, gravure, and variable data printing machines.

Operating at speeds in excess of 1500fpm, TruSpec will ANSI grade every code that passes under the scanner. Operators are alerted in real-time of deteriorating bar code quality.

With continuous feedback, on-line ANSI grading provides the best opportunity to catch printing problems as they occur. Print quality can be corrected before bar codes fail to scan. This means less waste and no product claims from your customers.

With continuous monitoring throughout the run, you can be sure of the quality inside every roll you deliver to your customer.

Whether you print a static code, an incrementing sequence, or a random database of codes, the TruSpec system will track each code and validate that the bar code contains the correct data. Not only will print quality be ANSI graded, but missing or wrong codes will be detected!

Model 100　　　　　　　　　　Model 25　　　　　　　　　　　

TruSpec Models:

Model 25 – Ideal for narrow web flexo applications or thermal transfer printers operating up to 500fpm.

The Model 25 can be mounted on press or on a rewind table

Model 100 – For high speed applications up to 1,200 fpm.

Options Include:

Motorized Traverse for verifying multiple lanes of codes

Sequential and variable code validation

Beacon warning light to alert operators of bar code problems

Spool printer for printing summary reports

GS1 Solution Partnership

Generating laser scans up to 2250 times per second, the TruSpec Profiler gives 10 scan coverage of UPC symbols at 1000fpm. TruSpec’s patented signal process produces full ANSI analysis on each and every scan in real-time

MUNAZO INC.　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　
KOBE FM,6-9Koyo-Cho Naka,Higashinada-Ku,KOBE,658-0032 JAPAN

TEL+8178-857-5447 FAX+8178-857-5443
http://munazo.jp 　　　　E-mail:munazo@munazo.jp

Skype Address: welcome.munazo

ooVoo Video Call Address: welcome.munazo

Accurate and Repeatable Measurements.

TruCheck USB CCD Tower TC USBCCD Tower.pdf

TruCheck USB CCD Tower(DPM) TC USBCCD_TowerDPM.pdf

TruCheck Inline Tru IN-Line.pdf

TruCheck USB CCD Tower 　 TC USBCCD Tower.pdf

TruCheck Inline Tru IN-Line.pdf　　　　　　
